NC have the most comprehensive range of Dump Trailers on the market, all featuring our patented ‘Magic’ tail door. This unique design allows the dump trailer to be used with or without a tail-door but it is always there when required at the flick of lever.

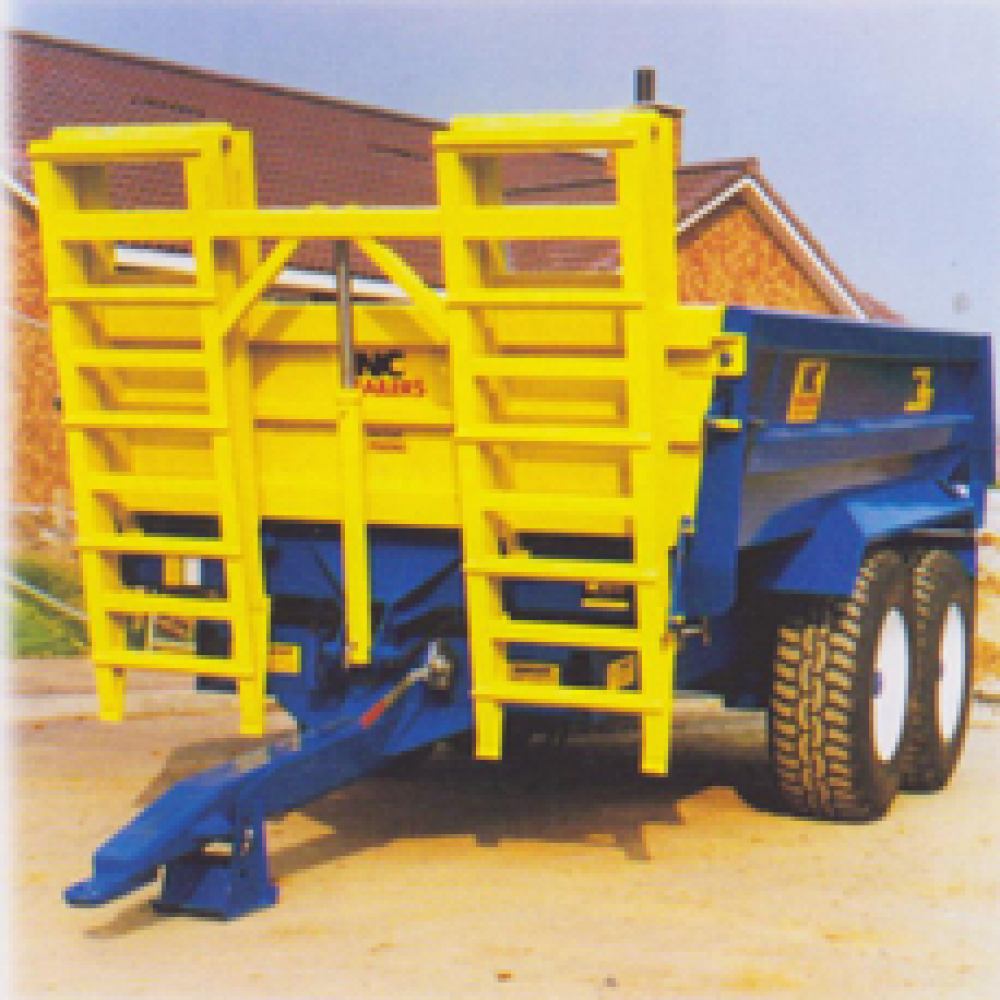

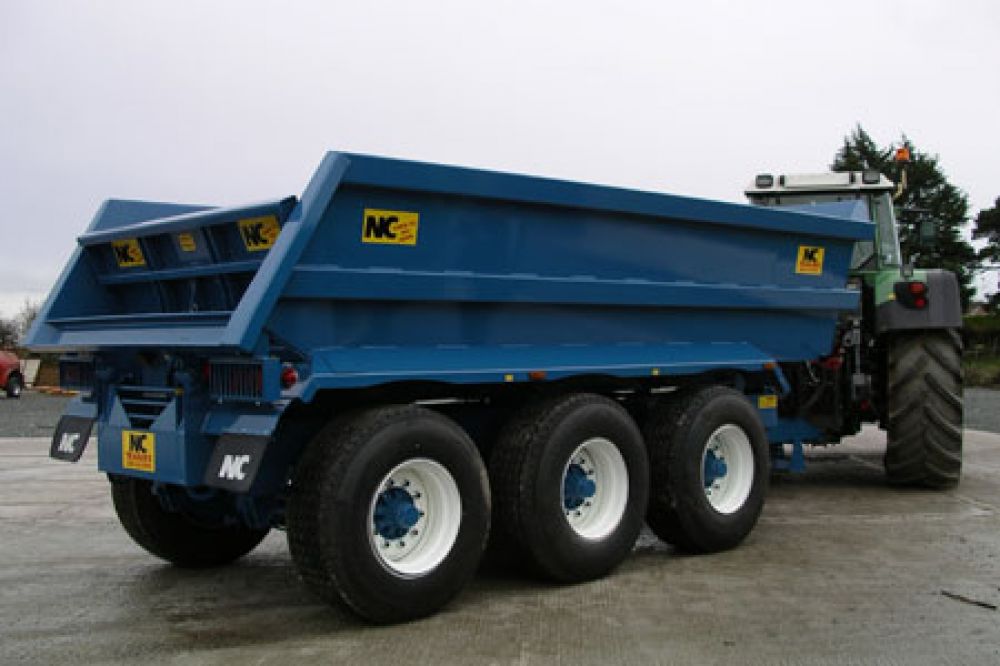

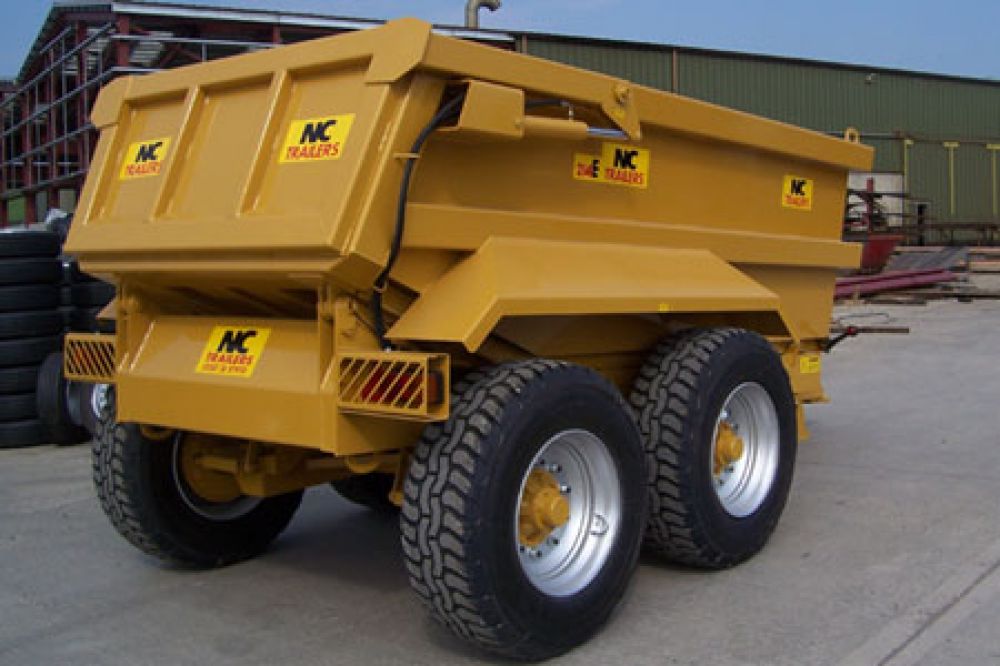

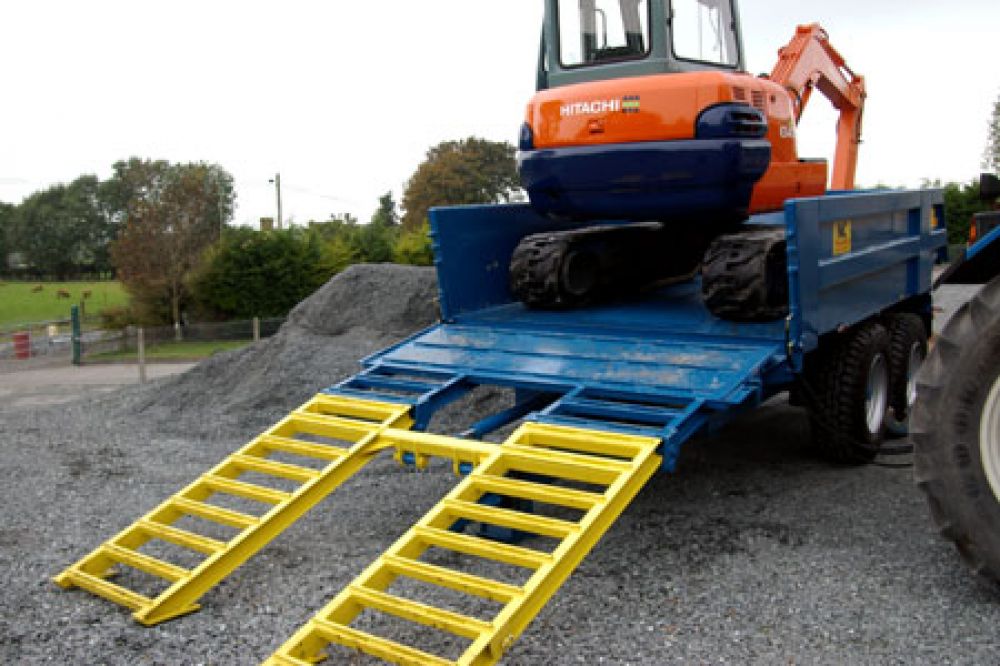

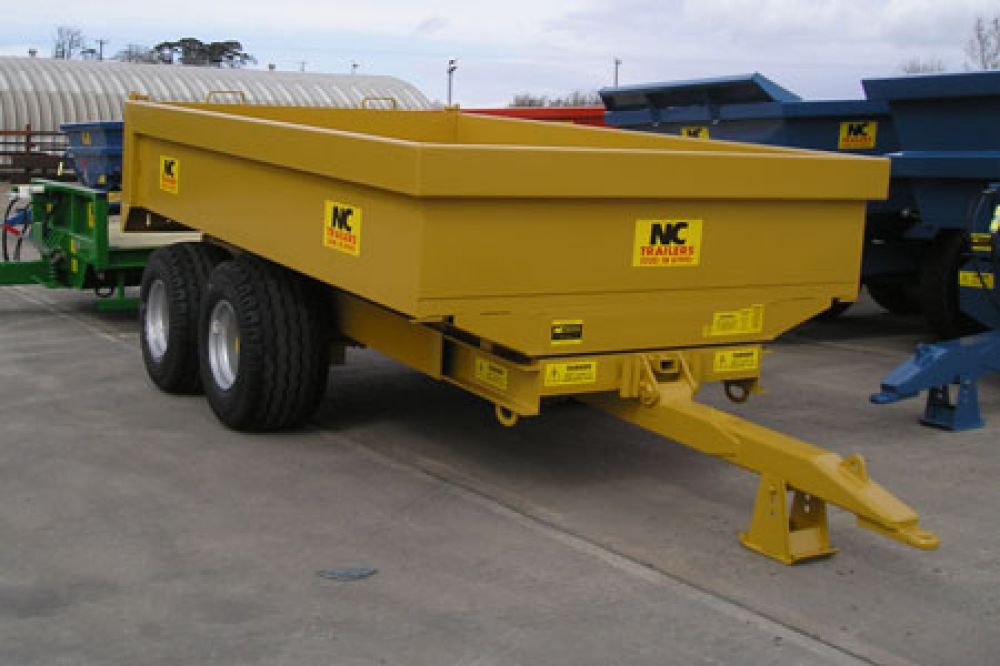

NC manufacture Dump Trailers ranging in carrying capacity from 8 tonnes to a massive 25 tonnes. Four models are available, the 300 series, which is our most popular range, featuring the ‘Magic’ tail-door. The 400 series featuring a ‘Magic’ tail-door but with the added benefit of a front door which folds down to provide ramps allowing machinery such as tracked diggers to be loaded into the trailer. This gives a more versatile trailer and allows one operator to transport 3 machines to a job saving both fuel and operator time. In addition there is the 400L series which feature a wider body with square sides and the E series which is a more conventional design of dump trailer with high sides and a hydraulic up and over tail door instead of a Magic door.

Features and Benefits

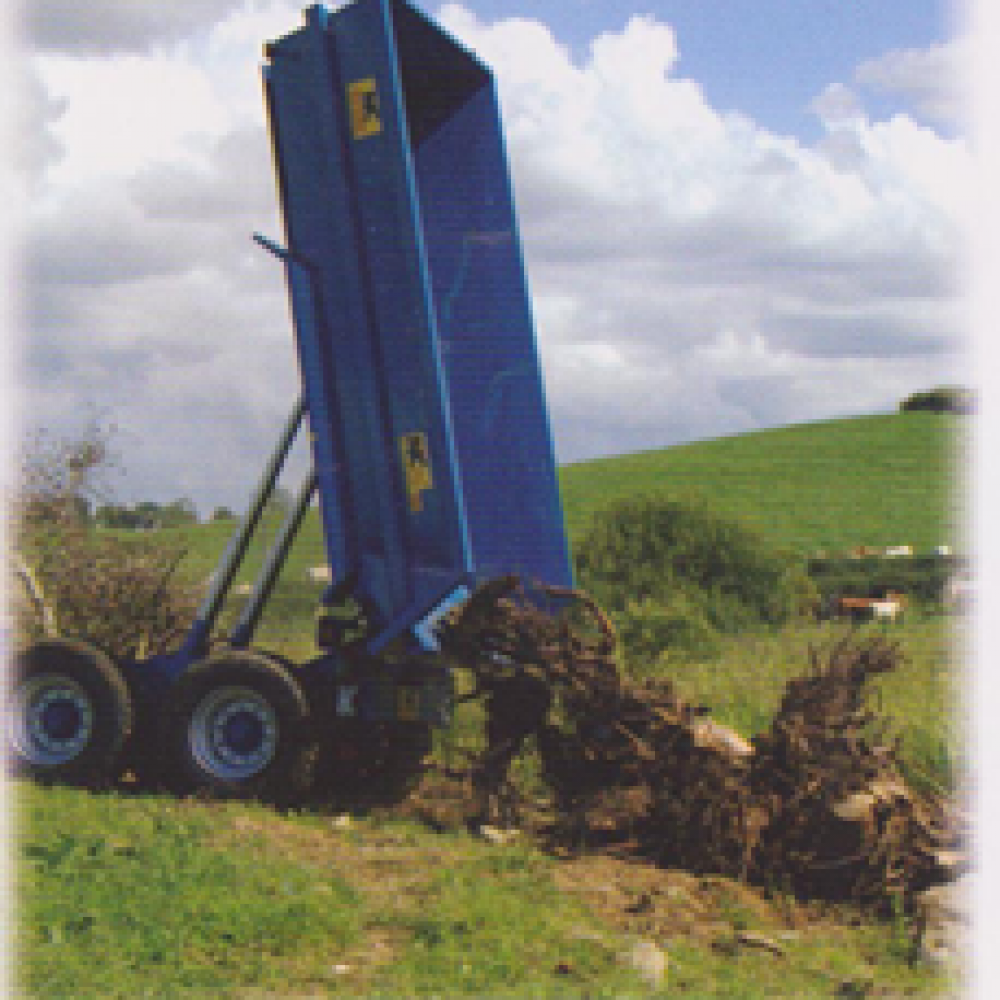

All NC dump trailers are constructed using 8mm floor plates supported by the optimum number of floor runners. Extra thick side panels supported by two super strong horizontal and bulge supports together with the chassis design optimised using the latest Computer Aided Design technology ensure we offer the most durable products possible. Careful positioning of the body pivot point ensures maximum discharge height, enabling the operator to pile loads with ease. Our dump trailer is wider and lower than most similar products making it not only more stable but also easier to load with a rubber tyred or mini track digger. An additional benefit of this layout is ease of cleaning as the body is wide enough to allow it to be scraped using a 6ft bucket and with our Magic tail-door there is no need to remove the door for cleaning.
