Details / Information

Storth Lagoon Master

STORTH LAGOON MASTER

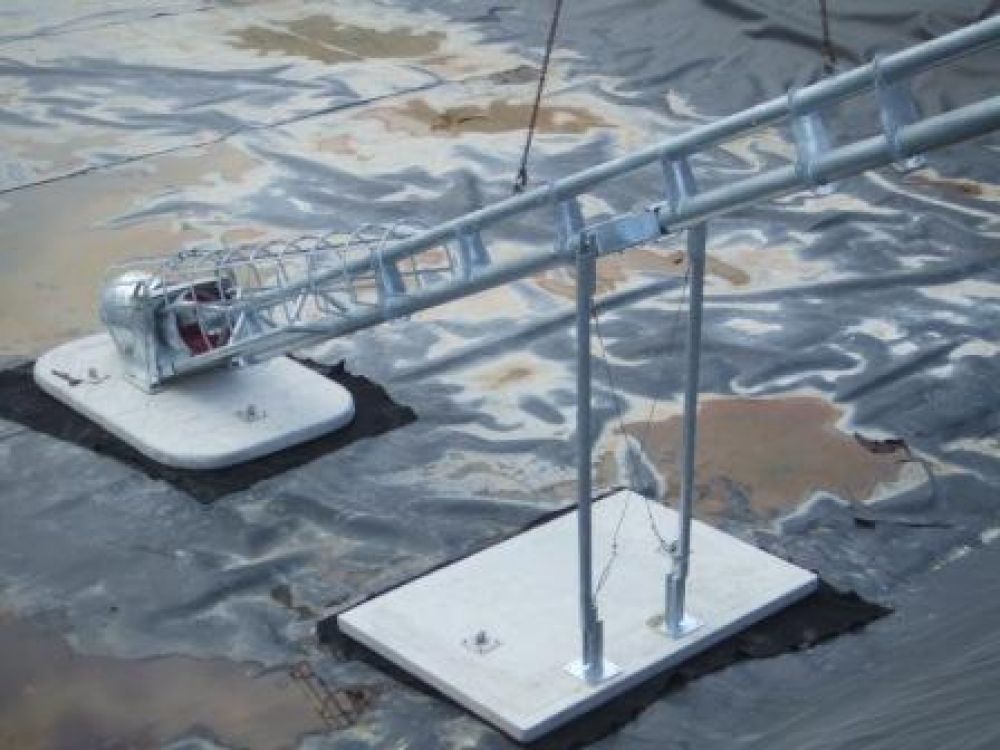

The Storth Lagoon Master is the ideal machine for use in a lined lagoon with or without a cover. The lagoon master has a 55mm drive shaft with maintenance free roller bearings and a mechanical seal in the main drive shaft tube which is oil filled to give a smooth running machine.

Each side of the main drive tube is two suction pipes which can be used to draw off slurry, this tubes are also used to provide strength to the machine. When fixing this machine to the lagoon bottom there must be a concrete slab in place which we can bolt the high pressure nozzle to. The divert nozzle can be adjusted at the top of the machine with a handle.
If the Lagoon Master is used in a lagoon with a cover the cover is protected from the propeller by the guard frame and the propeller housing. To give maximum performance you require 130hp to drive the machine. This machine comes in two lengths, 11 meter and 16 meter.
