Key Features:

Operating capacity of 2,700 lbs. and 3,000 lbs. with optional counterweight kit

Lift height of 130.3"

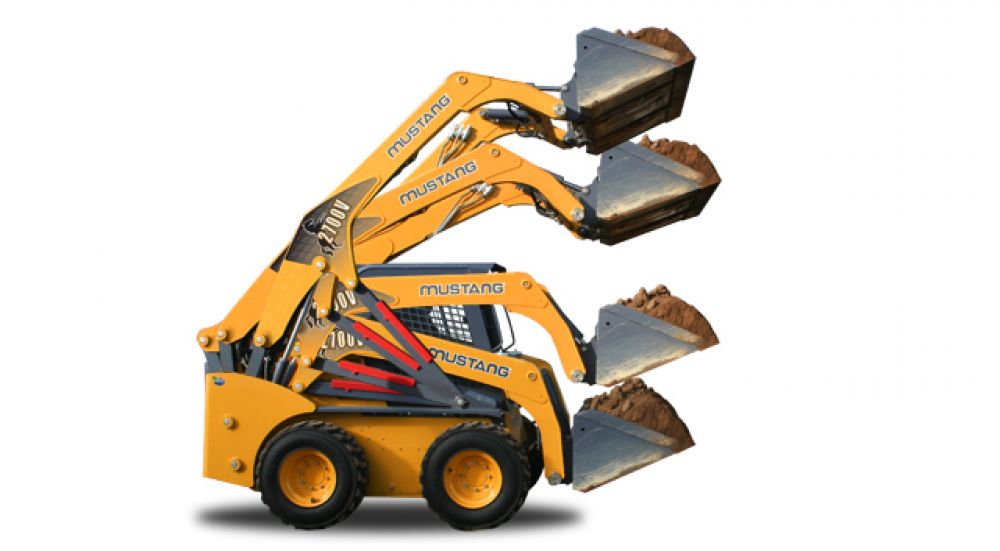

70.7-hp Yanmar Interim Tier IV diesel engine: Vertical-lift arm design

Fast ground speeds up to 11.4 mph with two-speed option

Operator-friendly Level II-certified ROPS/FOPS

Optional cab provides a wide-view glass door and large side screens that offer excellent visibility to the bucket and front operating area

Pressurized cab limits dirt and debris that enter the cab and reduces sound levels

Auxiliary hydraulics of 21.75 gpm: High-flow auxiliary hydraulics up to 36.9 gpm

Drive motors utilize SAHR (spring-applied, hydraulic release) brakes as standard equipment

Safety interlock system requires operator to be seated with restraint bar down prior to operation

Tilt-up ROPS/FOPS for easy internal service access

STEERING/HYDRAULIC CONTROL OPTIONS

Joystick Controls: Hand/Foot Controls:

ATTACHMENT MOUNTING SYSTEM

Optional hydraulic-powered Power-a-tach® mounting system

The Multi-tach™ mounting system is Compatible with Most Attachments
