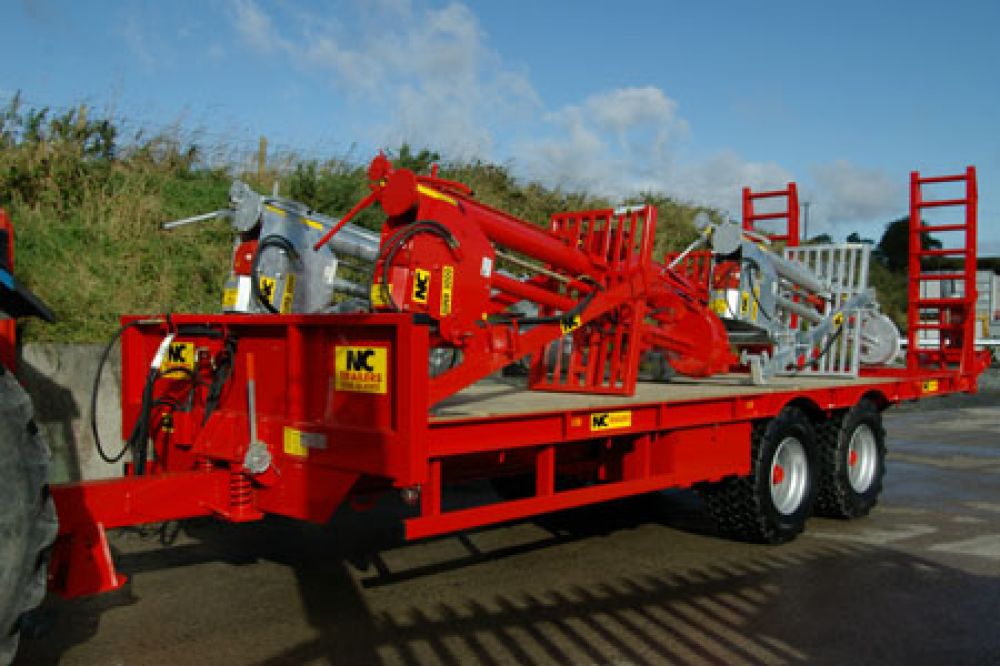

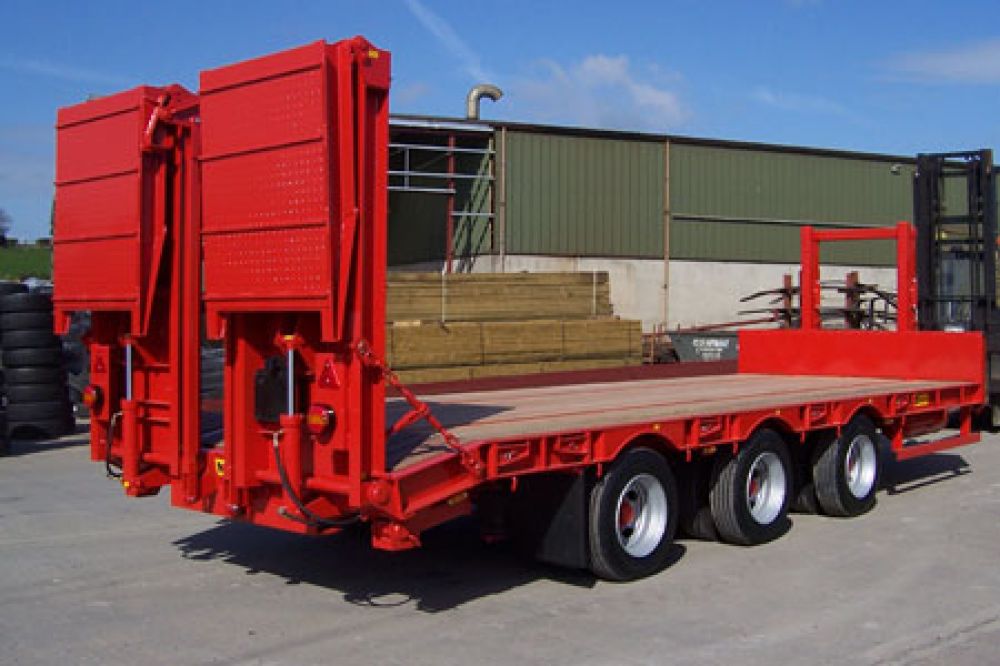

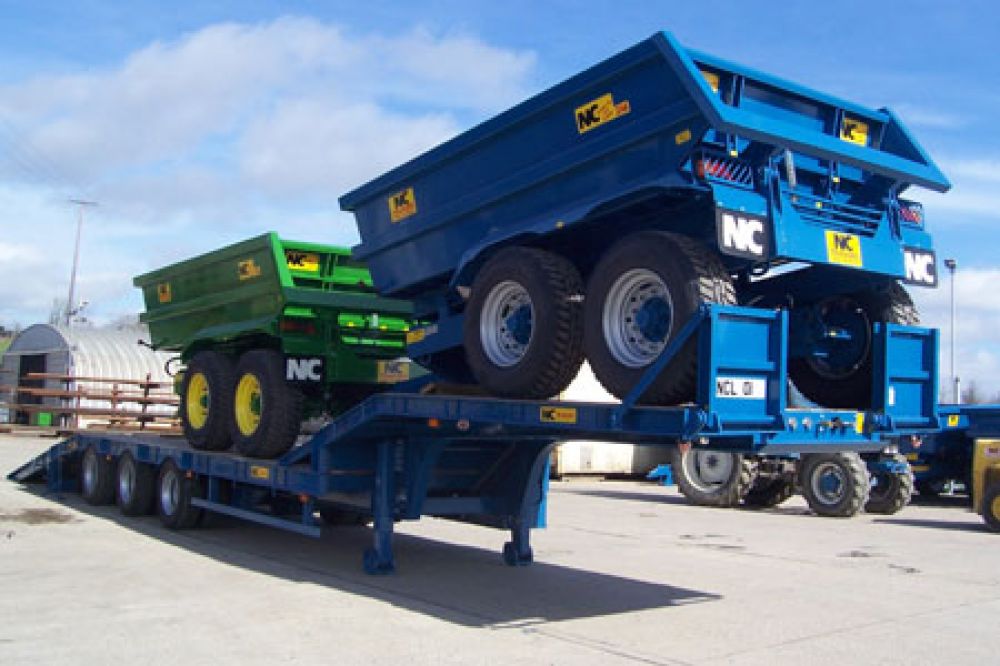

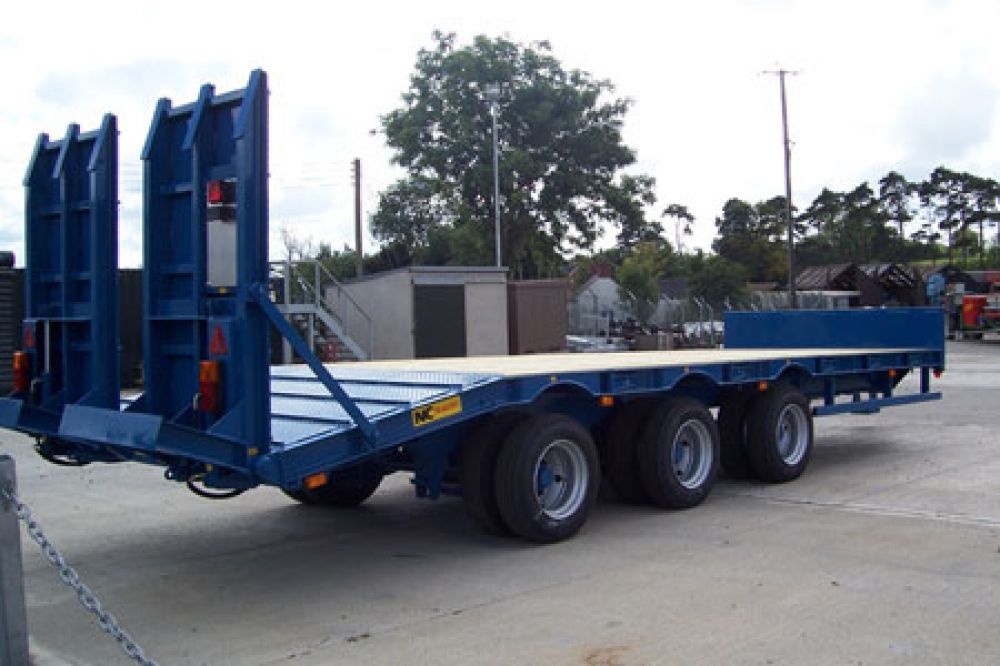

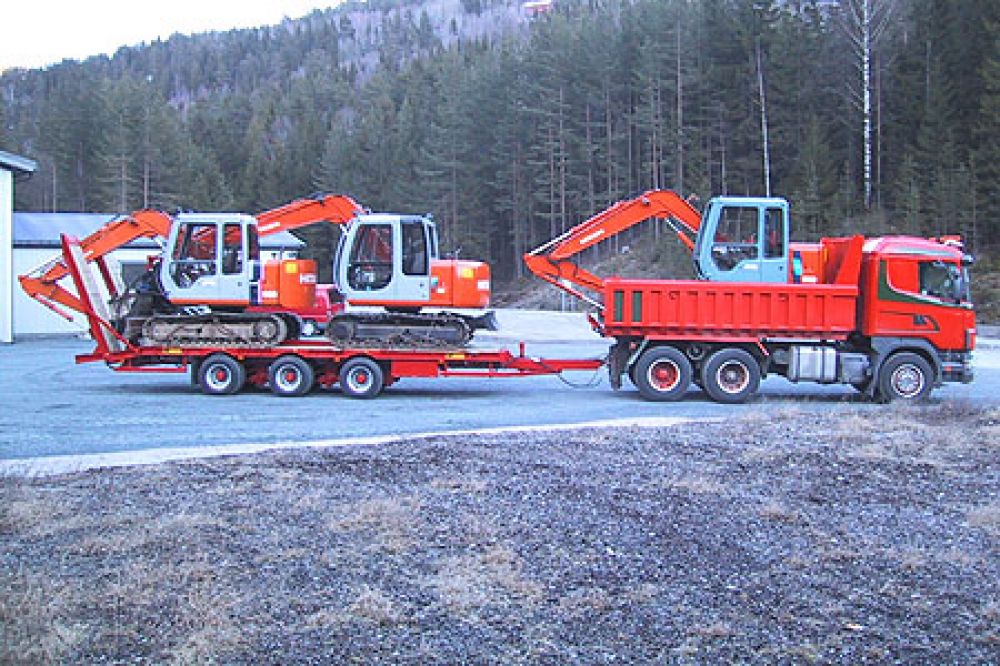

NC offer a range of Agriculture Tractor and Commercial low loader trailers.

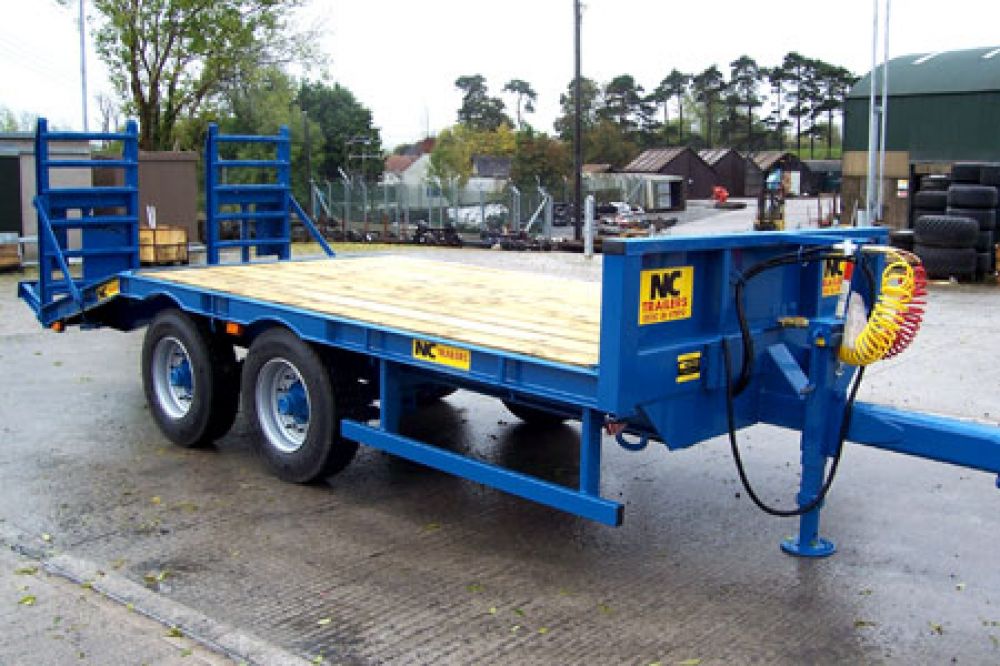

NC Tractor Drawn Low Loader

NC provides an innovative range of low loaders to a standard specification and specific customer requirements. Models include the 16-Ton tandem axle and the 22-Ton and 25-Ton Tri-axles.

Features and Benefits

Robust and durable trailer chassis based on two 254x146x31 U-beams which are reinforced where necessary. With the addition of 150x75x18 channel section chimes and 100x50x10 channel floor runners the loader is designed for use in the most arduous conditions. A height adjustable, sprung draw-bar is standard on all 16, 22 and 25 Ton models. The flatbed floor is fitted out with 50mm softwood timber along its entire length with the beaver tail steel chequer plated for extra durability. Grip bars are welded to the beaver tail to provide extra grip for tracked machines. Standard ramps are 700mm (2’4” wide) enabling even narrow machines to load onto a standard trailer. Ramps are spring assisted to ease raising and lowering. All main models use two or three 8-stud 90mm axles rated to 40kph and fitted with 215/75x17.5 twin tyres. These are mounted on 80mm springs on the 16 and 22 Ton models and 100mm springs on the 25 Ton. The underslung suspension set-up gives good ground clearance whilst maintaining a low bed height. Hydraulic brakes are standard using 25mm brake rams and sprung release. A lockable toolbox is fitted to the kerbside of the trailer for storage of chains etc and crash bars are fitted along both sides. Rope hooks and chime bars are fitted closely along both sides of the trailer providing plenty of securing points for different types of loads.

Options:

Outriggers, Hydraulic ramps, Durbar or timber sheeted ramps,

28mm hardwood floor, 3’2” or 3’6” wide ramps, Longer flatbed,

High speed 8-stud 100mm axles rated to 105kph

Air brake or dual air/hydraulic brakes,

ABS brakes and/or load sensing for brakes, Air suspension,

235x75x17.5 or 445x45x19.5 tyres, ‘Loadall’ hydraulic levelling tail,

Removable bale rack on headboard, Commercial style ‘cut’ chassis.
