STORTH AUTOMATIC SCRAPERS

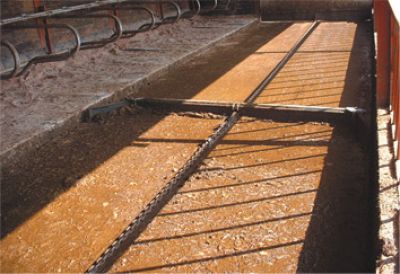

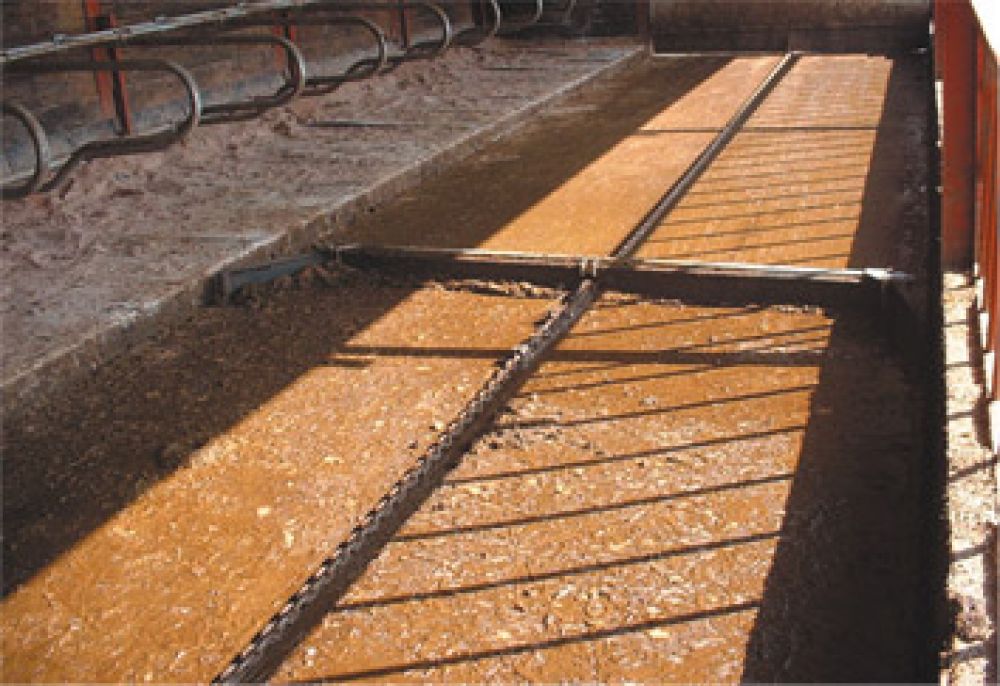

Chain Scrapers The strong and robust chain scraper system is a great option for farms with uneven floors or for use under slats. We use a deep case hardened chain and corner boxes made from 6mm galvanised steel; the chain has a 14mm diameter and is pre-stretched to 20 tonnes. The system is driven by a robust 0.55kw motor with an output speed of 5.2rpm. We use a fully electronic, automatic control panel which can operate up to 4 passages at any one time, scrapers can be programmed up to 24 times a day, manual scrapes can also take place when in Automatic. A quick tensioning method is used on the drag bar. All scraper blades are made from 10mm steel and the main beam is galvanised.

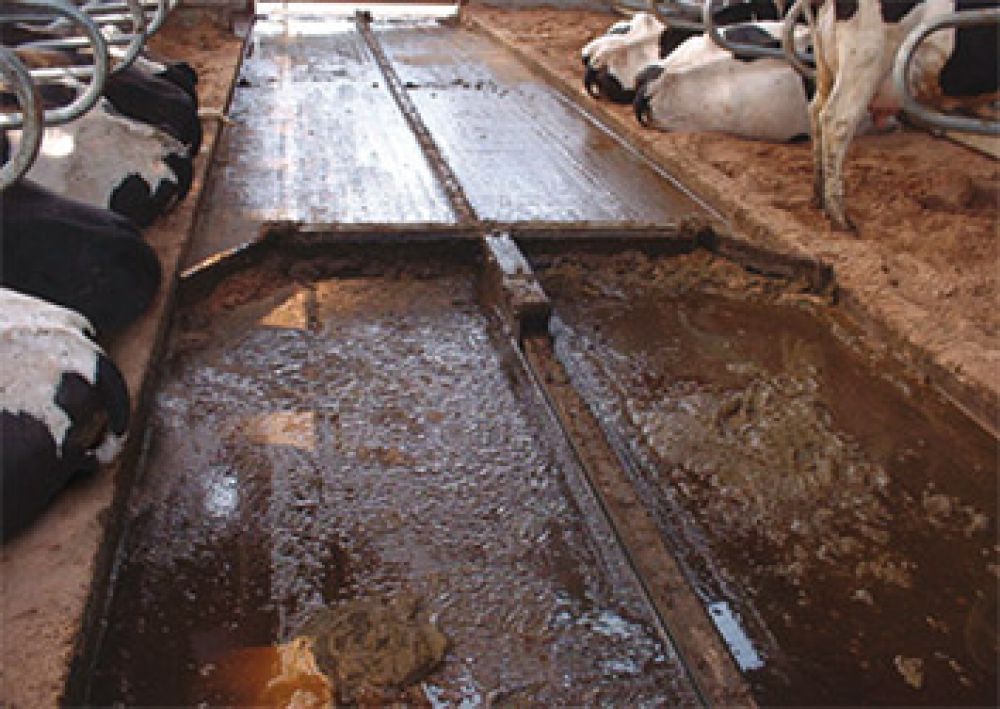

Hydraulic Scrapers Our hydraulic system is the most technically advanced system of its kind on the market using high quality components and electronics. Storth are the only manufacturer who supplies both top and bottom track on our scraper system as standard, we see this as a great benefit to the system allowing freer movement on the track as the top track runs on the steel bottom track, as opposed to alternative systems running on small guides and onto concrete which in time wears into the concrete. All Storth Power units are assembled in house by our assembly staff. We offer two types of power units; Our single power unit can only run one passage at any one time as this uses a single oil pump. Our double power unit can run two passages at once using a double oil pump, this allows both passages to run at the same time at the same speed, no other unit on the market can offer this facility. Both options can run unto 6 passages at a time on an automatic sequence and offer a cow down facility using a pressure transducer. Storth offers two types of ram boxes dependant on building layout, if there is no space outside the building we can insert a sunken ram box which is installed into a sump made in the concrete and houses no electronic components reducing breakdowns. Scraper blades can be custom made to any size you require, we can manufacture reverse scrapers, folding scrapers and also backing gate systems

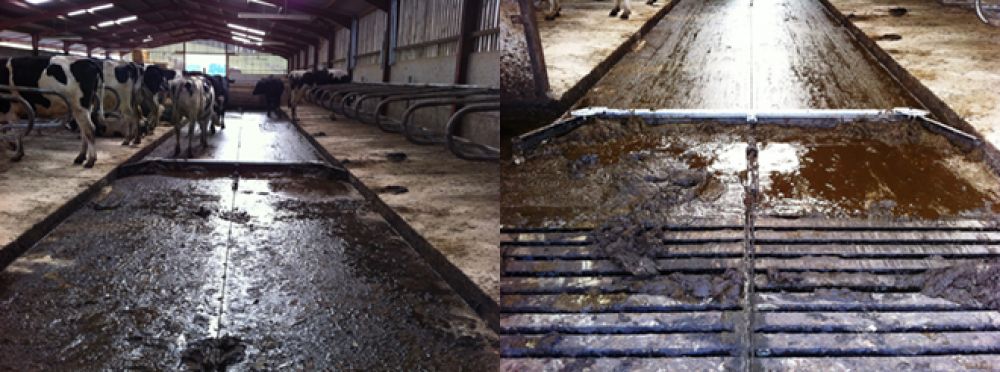

Pro-Rope Scrapers The Storth Pro-Rope system uses 9.5mm Pre-stretched polyethylene rope, we use this type of rope rather than the nylon alternatives, as our Pro-rope is much stronger and more cow friendly. Due to many years of research Storth manufactured a rope system which is unrivalled by our competitors due to the use of the right rope. Pro-Rope is “The worlds strongest fibre”, it is used in many industries including Emergency and Military use and Offshore rigs. The rope we use gives us the backbone of a reliable and cow friendly system. The system is run by two winches which allow one winch to pull on while to the other Pulls off. This is a simple system and very easy to operate.
